Rusty Shimano Hubs (c.2008)

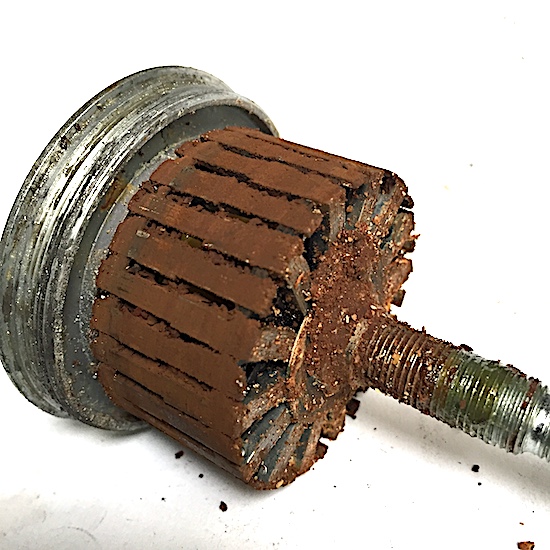

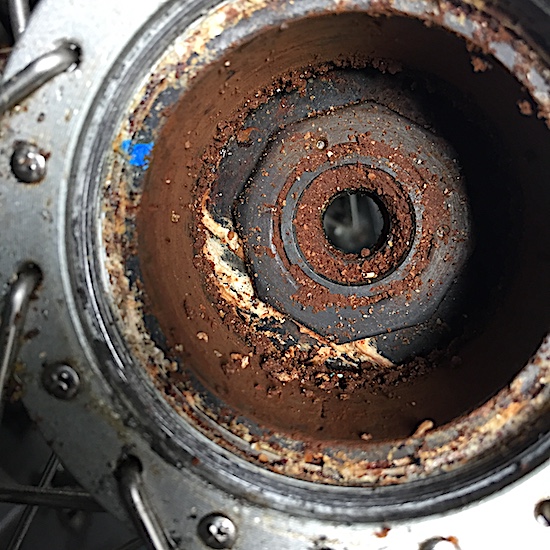

Attempted to repair two rusty Shimano hubs.
A dynamo front (model DH-2R30) and Nexus 8-speed rear (SG-8R20).
Both needed replacement, and luckily a friend had a spare rear hub.
![](shimano-hubs-5.JPG)
![](shimano-hubs-7.JPG)
![](shimano-hubs-10.JPG)

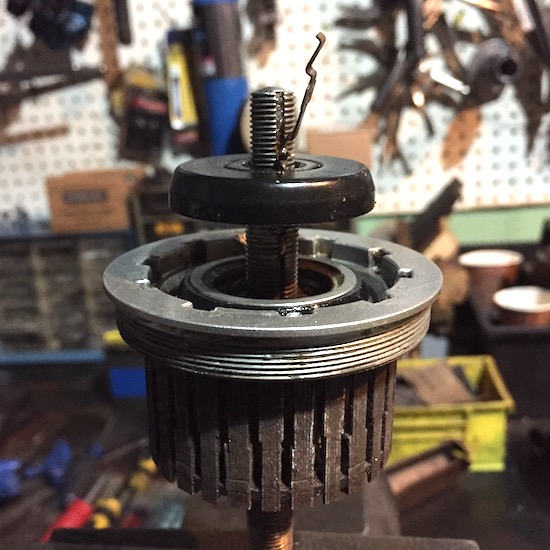

After cleaning and soldering, I got the dynamo hub to light!
But with live wire thru axle and hub bearing cone adujustment it was not reliable.
![](shimano-hubs-2.JPG)

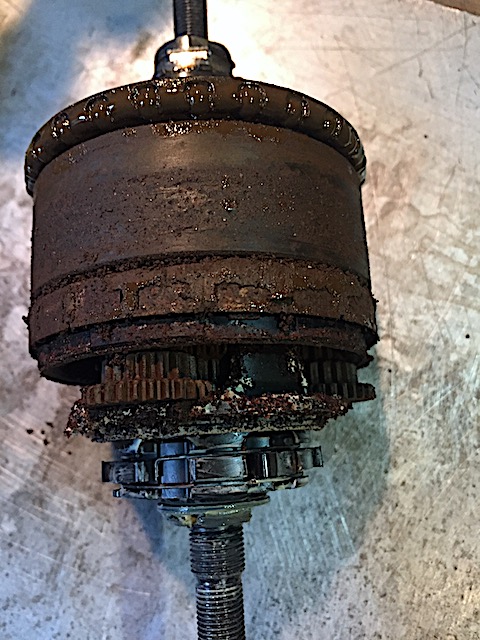

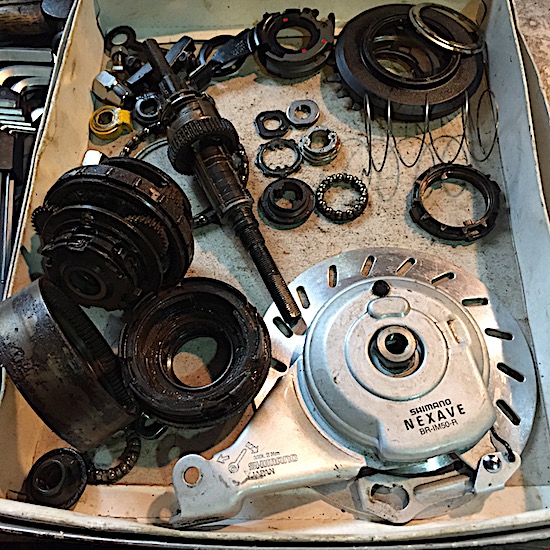

After reassembly of rear hub, it also worked, but not smooth enough.
![](shimano-hubs-4.JPG)
![](shimano-hubs-11.JPG)

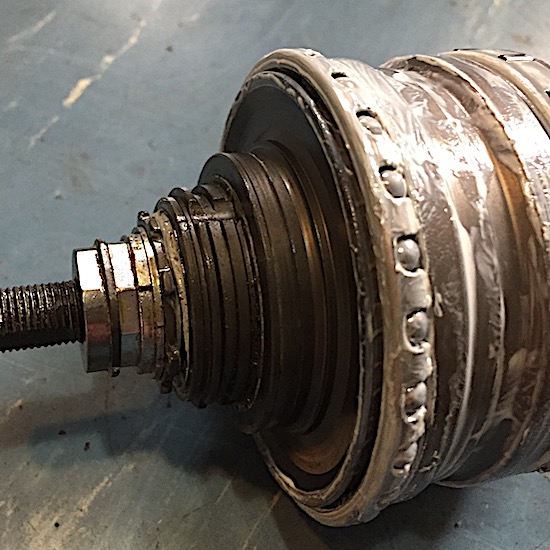

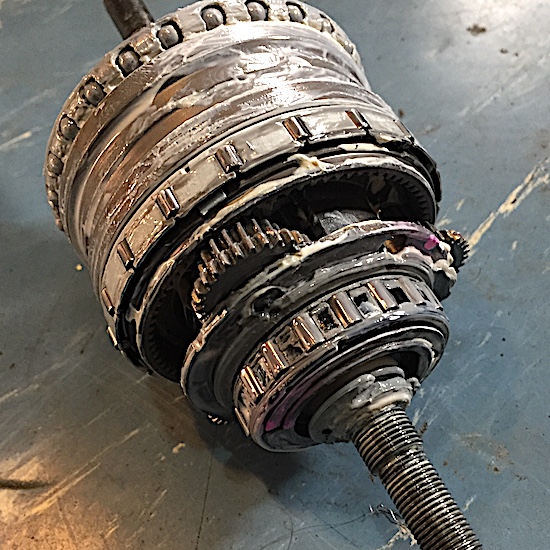

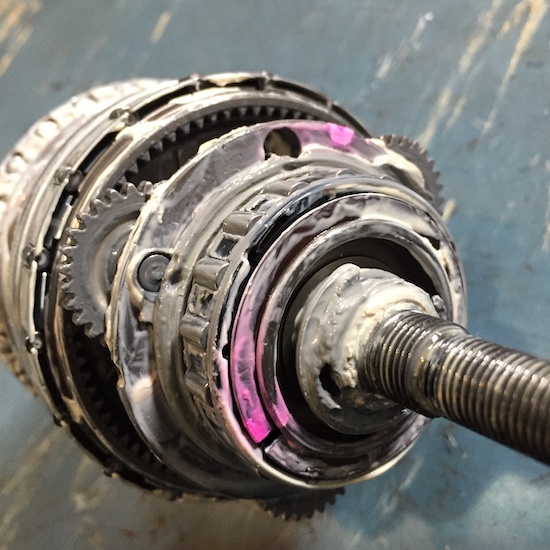

The new internal assembly, with pink grease, fit into the rear wheels' hub shell.
![](shimano-hubs-13.JPG)
![](shimano-hubs-12.JPG)
After re-adjusting Shimano's rotary shift system, the bike is on it's way.

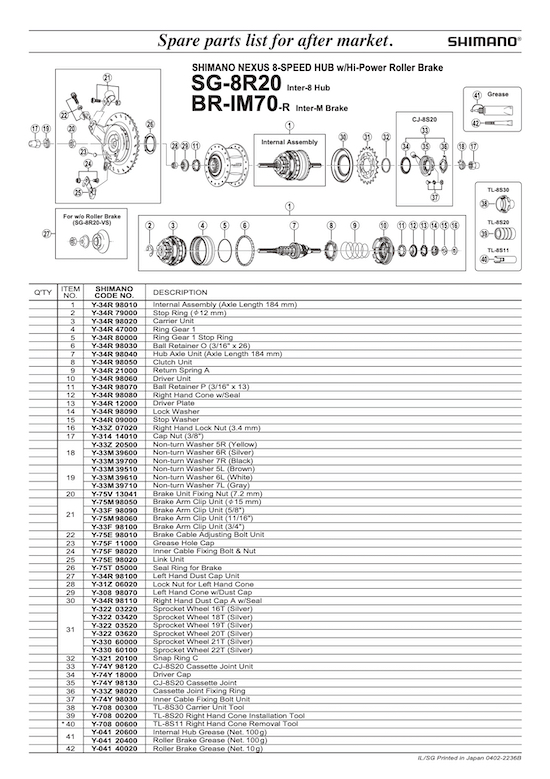

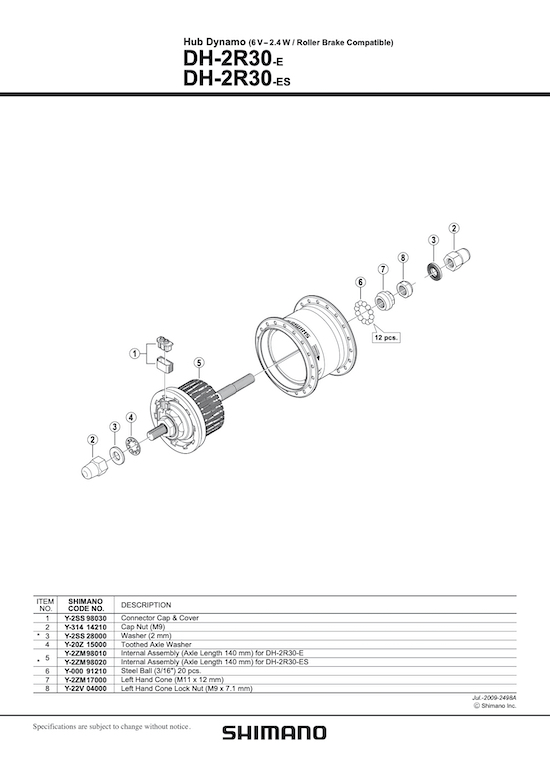

Here are Shimano exploded parts lists for these hubs.
![](shimano-hubs-DH-2R30.JPG)
![](shimano-hubs-SG-8R20.JPG)
